Disconnect switch and Load break switch

GeneralFW1 type Outdoor on load break switch (switch disconnector) contained in this list are destined to switch stub lines and ring main lines ortransformers( It can be equipped with MV HRC fuse links as short circuit protection function) or for switching under on load conditions.FW1 type switch comply with IEC/IEEE and DVE-recommendation standards. Especially comply with DIN VDE 0670 part 3 and IECpublication IEC-60265, IEC-129.
0.00
0.00

GeneralFW1 type Outdoor on load break switch (switch disconnector) contained in this list are destined to switch stub lines and ring main lines ortransformers( It can be equipped with MV HRC fuse links as short circuit protection function) or for switching under on load conditions.FW1 type switch comply with IEC/IEEE and DVE-recommendation standards. Especially comply with DIN VDE 0670 part 3 and IECpublication IEC-60265, IEC-129.

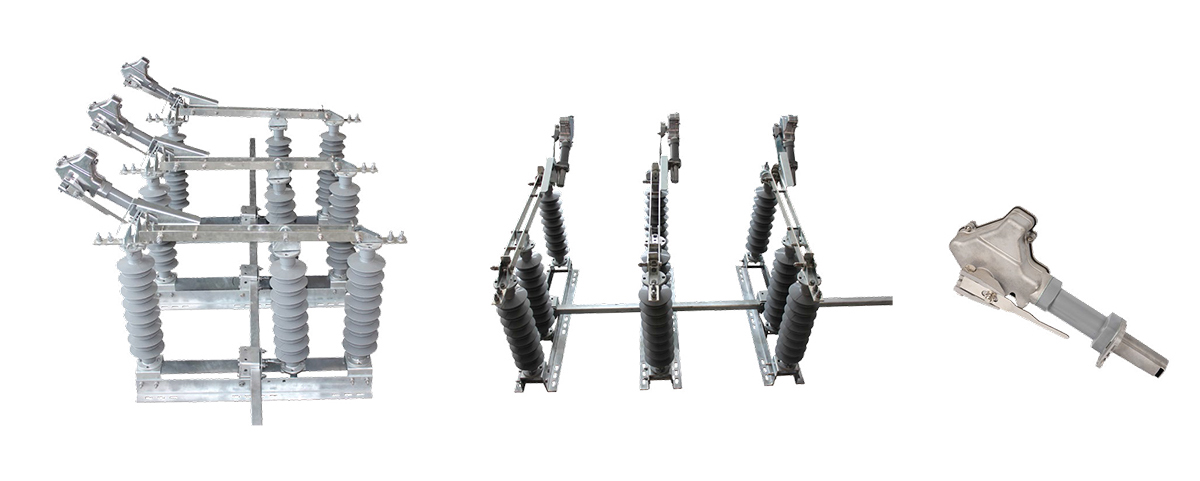

On Load Break Switch(Disconnector)

IEC/ANSI/IEEE/DIN

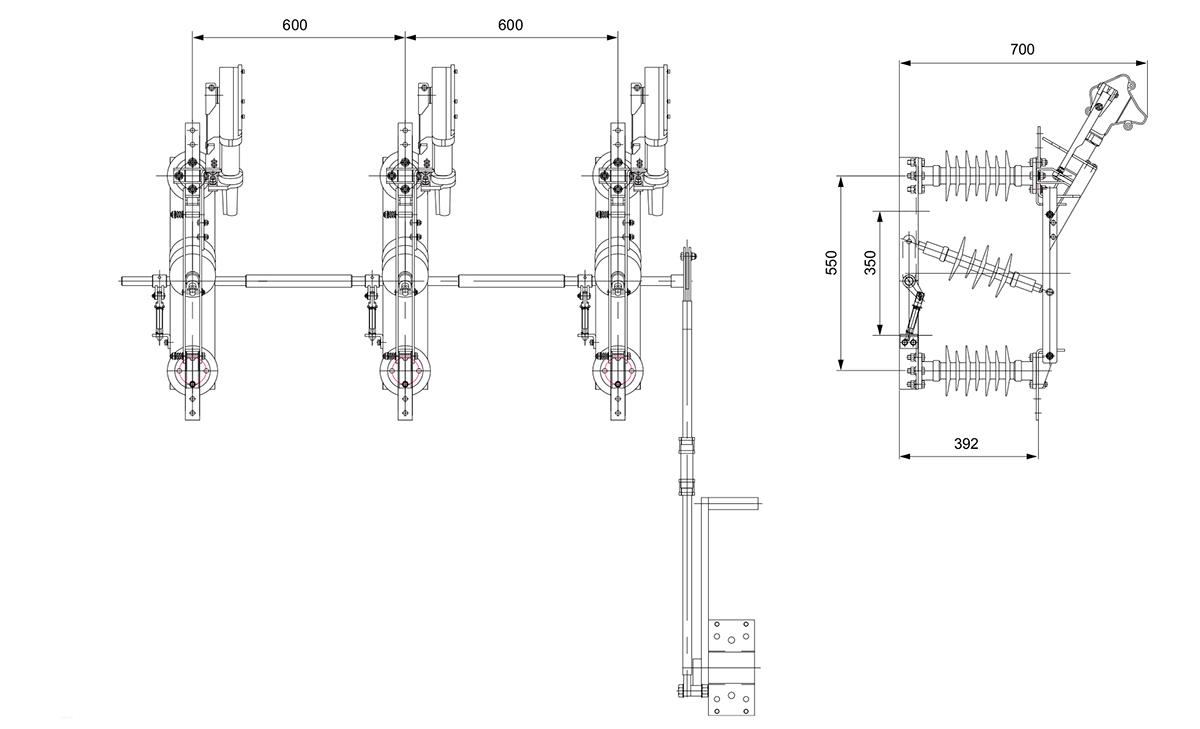

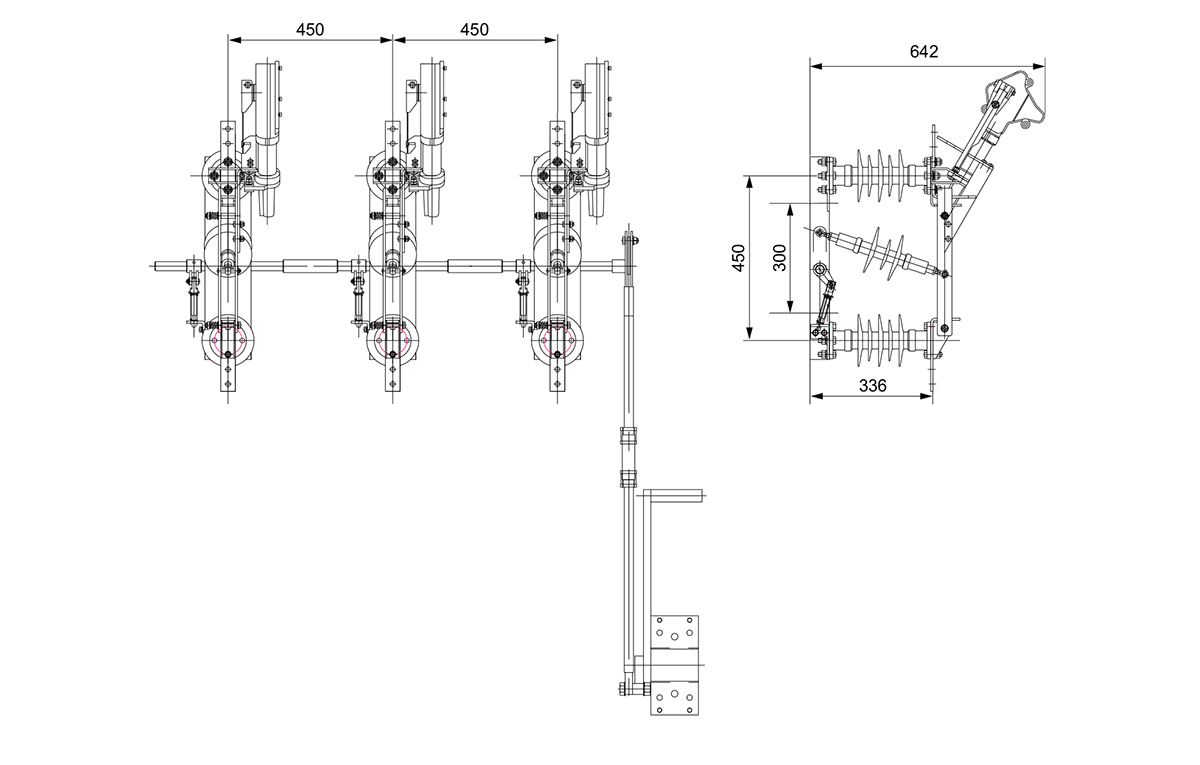

FW1-12/24/36

General
FW1 type Outdoor on load break switch (switch disconnector) contained in this list are destined to switch stub lines and ring main lines or transformers( It can be equipped with MV HRC fuse links as short circuit protection function) or for switching under on load conditions.
FW1 type switch comply with IEC/IEEE and DVE-recommendation standards. Especially comply with DIN VDE 0670 part 3 and IEC publication IEC-60265, IEC-129.

Service environment

a)Air temperature: Maximum temperature: +75℃; Minimum temperature:-45℃
b)Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c)Altitude above sea level: Maximum installation altitude: 2500m
d)Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e)No frequent violent shake

Features and benefits

•Compact design
•All steel parts either in stainless steel or hot-dip galvanized
•Solid and stable base frame
•Main contact with icing protection
•Insulators available in porcelain or alternatively in silicone
•Minimal sag for the line-connection thanks to the two fixed terminals
•Completely maintenance antirust AL alloy -Arc chamber
•Switching-off procedure without external arc
•Short circuit making capacity under specific conditions possible
•Fixing on the supporting structure either by clamping (free setting) or screwing (holes in the base frame)
•Easy on-site installation and setting
•High reliability: up to 1’000 cycles (depending on the making current)
•All conducting parts either silver, nickel or tin-plated
•Practically maintenance-free

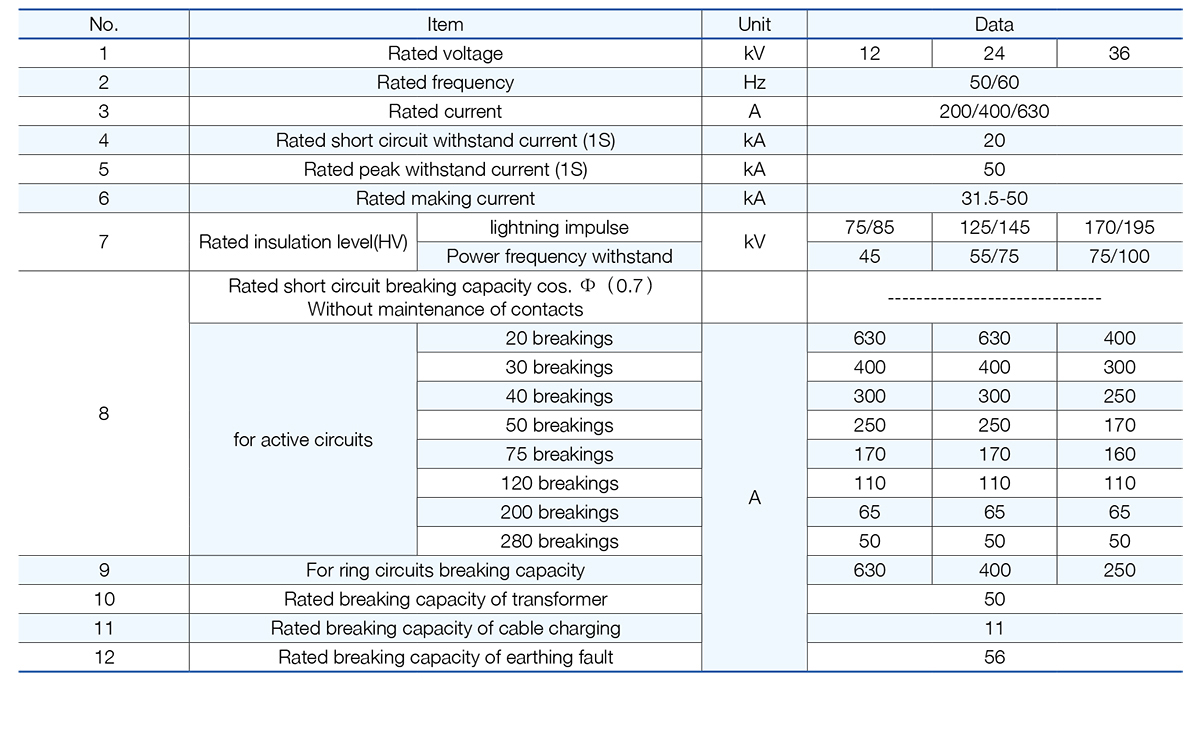

Main technical specifications

FW1-12kV

FW1-24kV

FW1-36kV

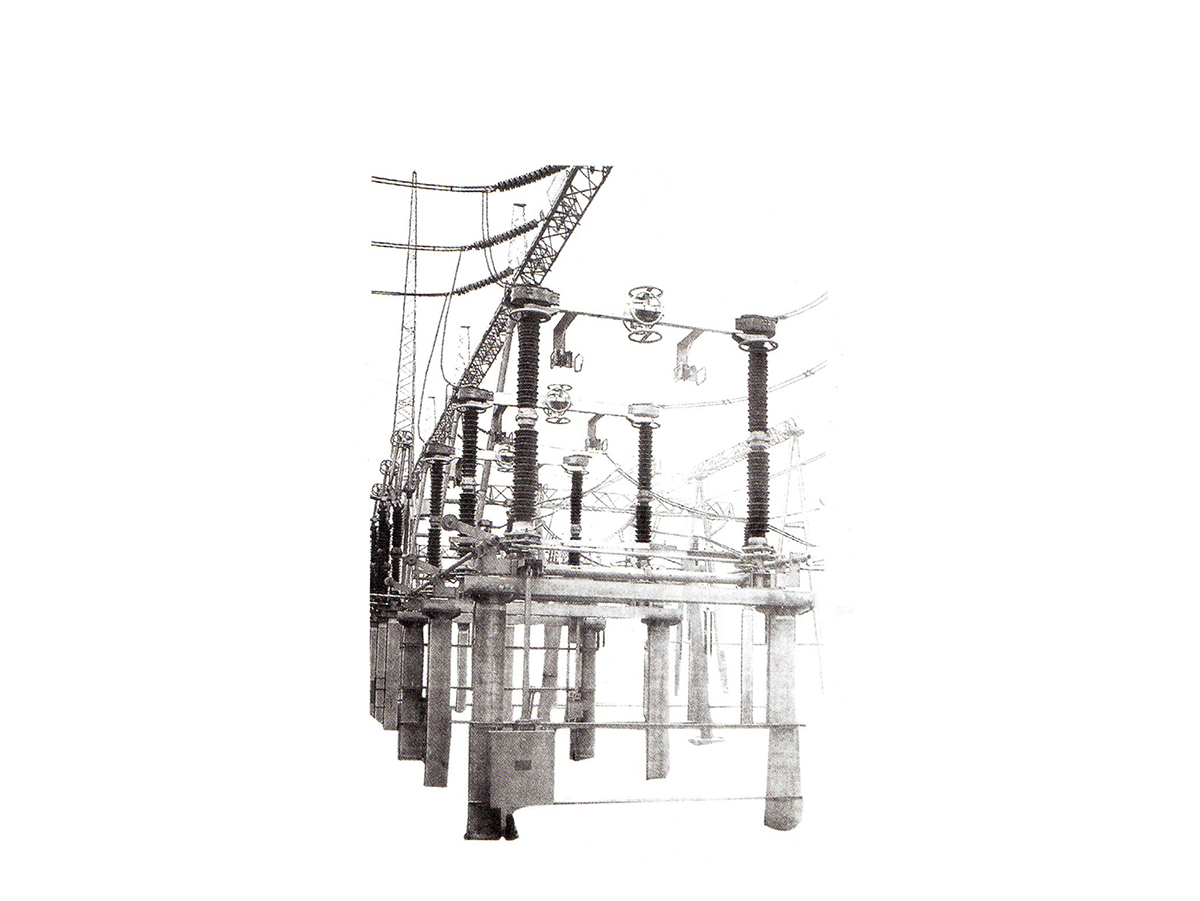

GW25 Outdoor High Voltage Disonnect
Switch For Substation

General
GW25 outdoor high voltage disonnector switch has a double-column , horizontal , central, interruption structure,It is an equipment used for 50/60Hz three phase AC ,outdoor high voltage transmission and distribution system to switch and disconnect the circuit.
For this type disonnector switch, part of terminal is in contractless condition with the flexible conductor ,leading to a stable and reliable electricity performance.And the contact part adapt a safe and flxed device,so that contact and finger will not be separated by external force(like Strong Wind, Earthquake, Electric Power,etc.) when the disonnector switch in the close statement.
The base part adapt a multi-bearing structure to make the switch can operate flexibly in a long-term. Meanwhile, interphase drag rod and vertical link rod can adjust within ±20mm when in site installation. Because vertical link rod rotates 190°when disconnector is operated by operating mechanism, and then it constitutes a 5°dead-point structure at the open and close critical position ,so that make the switch cannot open and close automatically even under the external force.
Disconnector body can be equipped with grounding switch,which contain a mechanism can rotates 90°around its own long axis,so that the switch can operate flexibly.
When grounding switch close, it cannot happen contact separation even under the external force, also can bear the dynamic, thermally stable current same with the disconnecting switch.
Grounding switch and disconnecting switch with reliable mechanical interlock device,
Grounding switch also can like disconnecting switch to operate by the operating mechanism, otherwise,manual mechanism and motor mechanism can interchange.

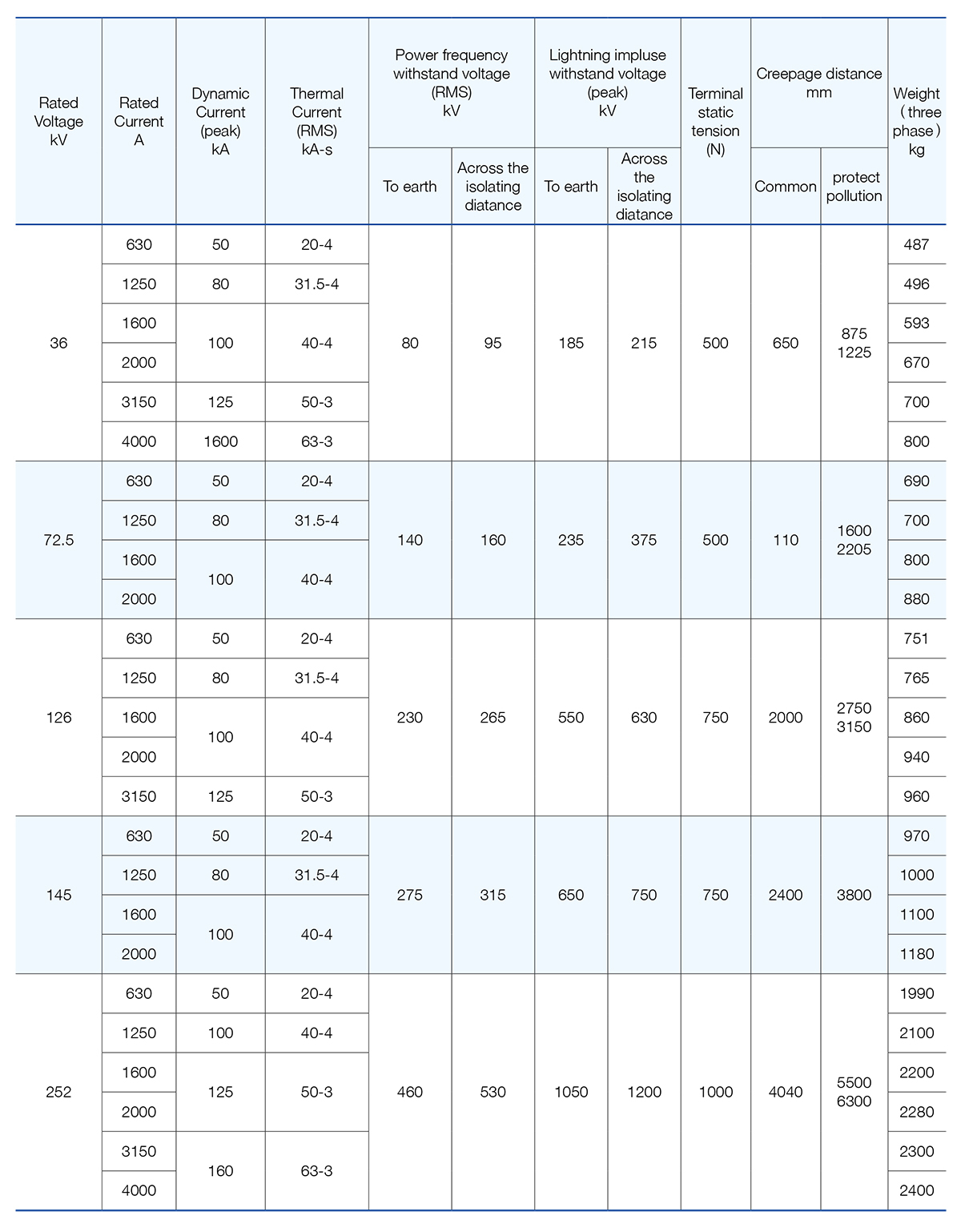

Technical Specification

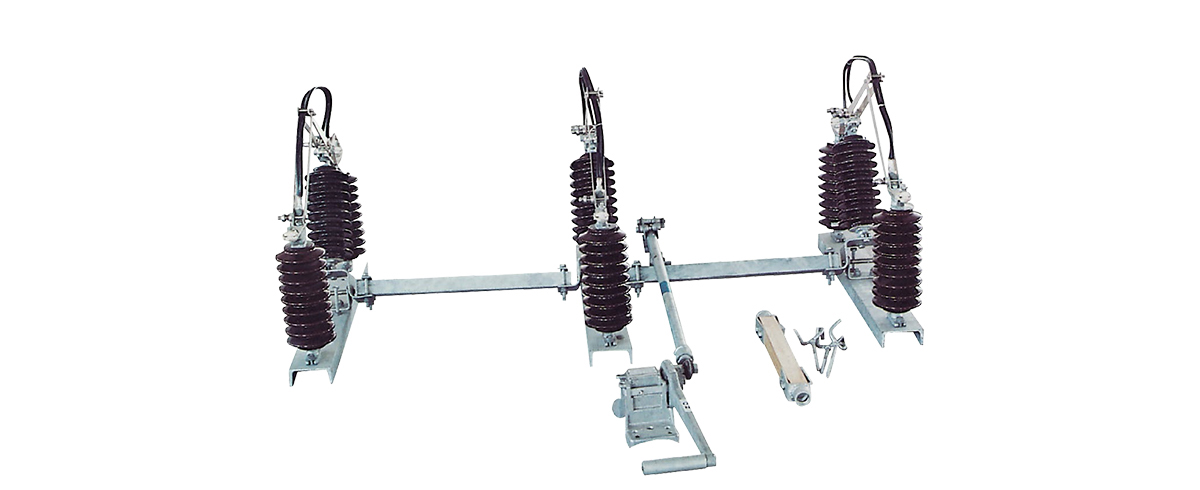

RH-B-11/33kv Outdoor Gang
Isolator Switch

Summary

Outdoor AC Gang isolator switch 11KV/400A-33KV/600A used in 3 phase AC 50/60Hz power circuit, it is used as switching on and switching off at the voltage with no load. It apply to IEC standard. IEC60964: 1996, IEC62271-102:2002

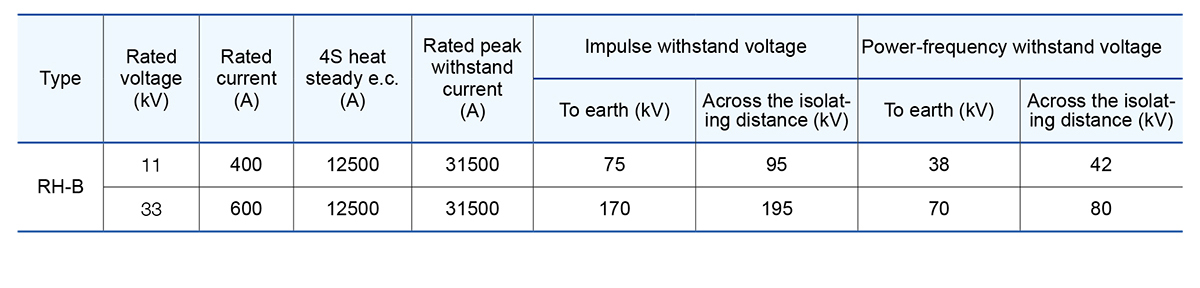

Technical Specification

Outline Dimension

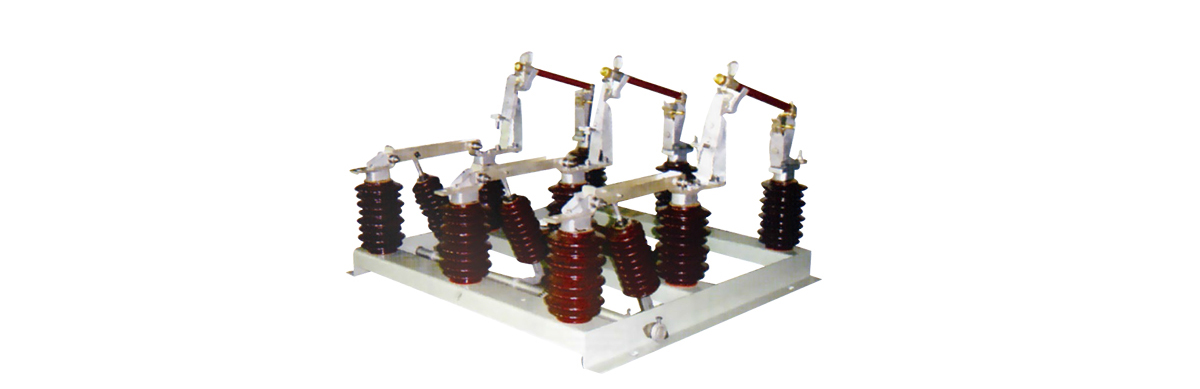

GWR-12/36 Outdoor AC High Voltage Disconnect Switch (Fuse Type)

Summary

GWR-12/36 outdoor AC. high voltage fused type disconnect switch (disconnect switch for short) is used in electric power system with rated frequency 50/60Hz, rated voltage 12/36kV. Its main for making or breaking circuit under line supplying voltage in outdoor high voltage distribution system equipments. Thereof anti-pollution type disconnect switch is especially used in serious polluted area. It accords with standards of IEC62271-103: High voltage switches.

Ambient Condition

Altitude: ≤1000m;
Ambient temperature: +50℃ ~-30℃;
Wind speed: ≤35m/s;
Earthquake intensity: ≤8 degree;
Air pollution: IV;
Ice thickness: ≤10mm;
Applicable occasions of normal type switch should free from chemistry aggradation, dust and other volatile & caustic thing.

Model

Structure Feature

Disconnect switch is composed of fuse components, frame and operating insulator, fixed contact, contact blade and linkage spring mechanism.

Cutout fuse assemble: mainly combine with upper, down movable and fixed contact, arc extinguish bushing, insulator and mount support parts, during normal work, the fuse linking the moving joint of the arc extinguish bushing with movable contactor, the arc extinguish bushing is at closed position under the pressure of the fixed contactor.
Frame: Base is bended from steel sheet, axis with pulling arm cross through frame center. Holes drilled on base are used for fixing post insulator.
Post and operating insulator: anti-erode post insulator.
Fixed contactor: contact blade made of red copper plate, fixed on post insulator and extended level plane end as for connecting wire and upside of curve connected both side reliable with contacting blade.
Contact blade: it's made of two rectangle section red copper plates, both ends of contact blade attached with spiral spring to adjust contacting pressure.
Switch could be operated combined with CS mechanism vertical mounting on outdoor double electric poles.

GWR-12/36 Outdoor AC High Voltage
Disconnect Switch (Fuse Type)

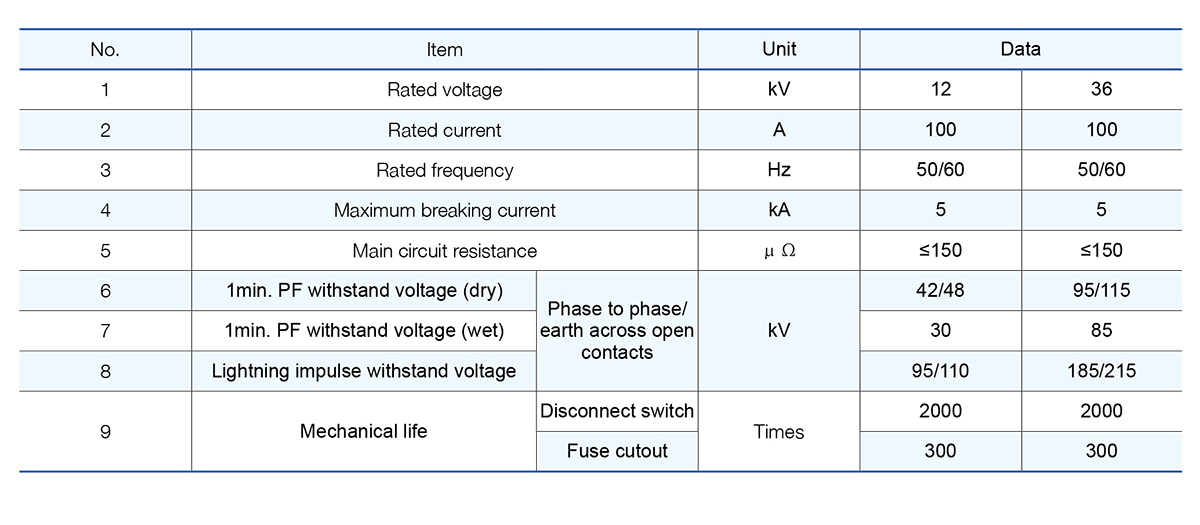

Technical Specification

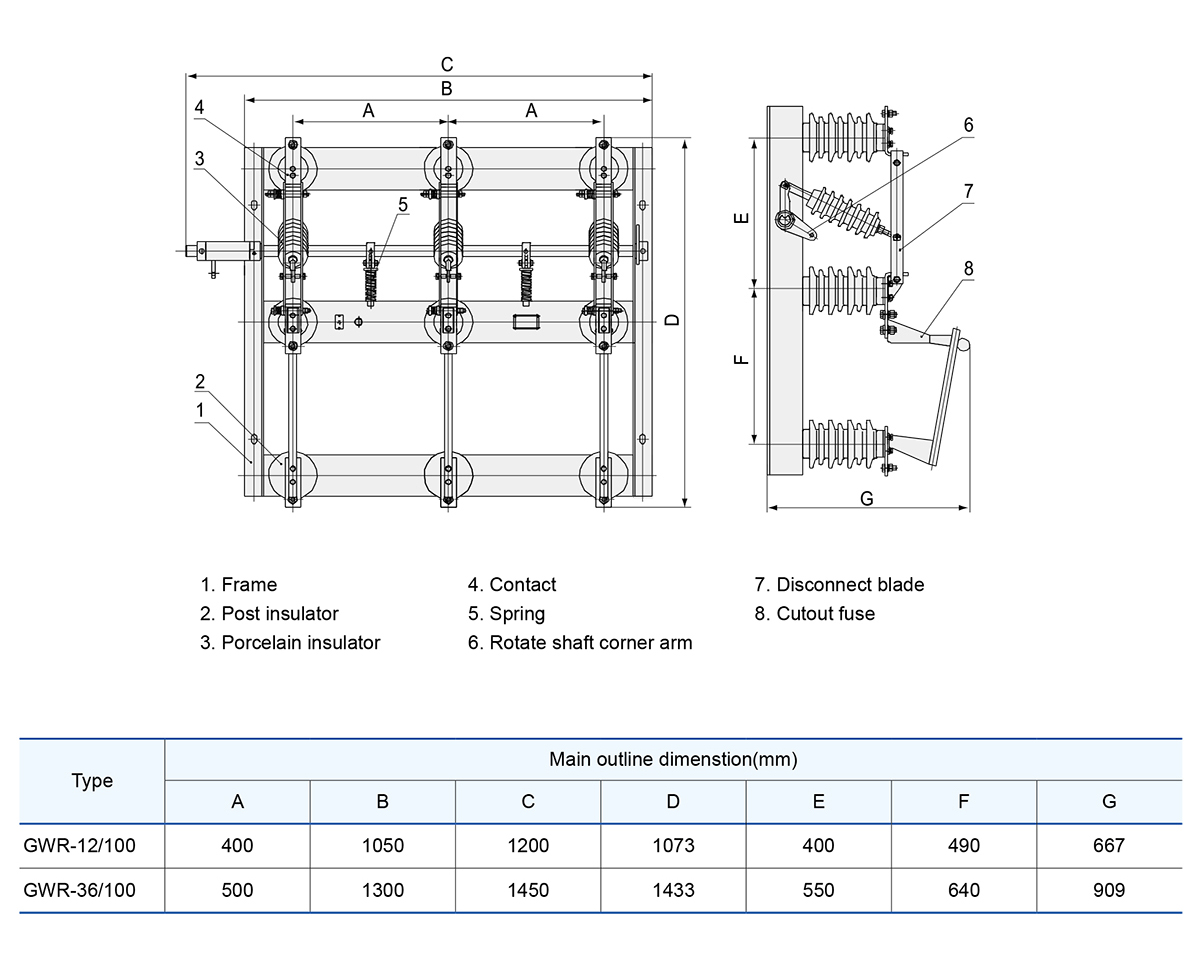

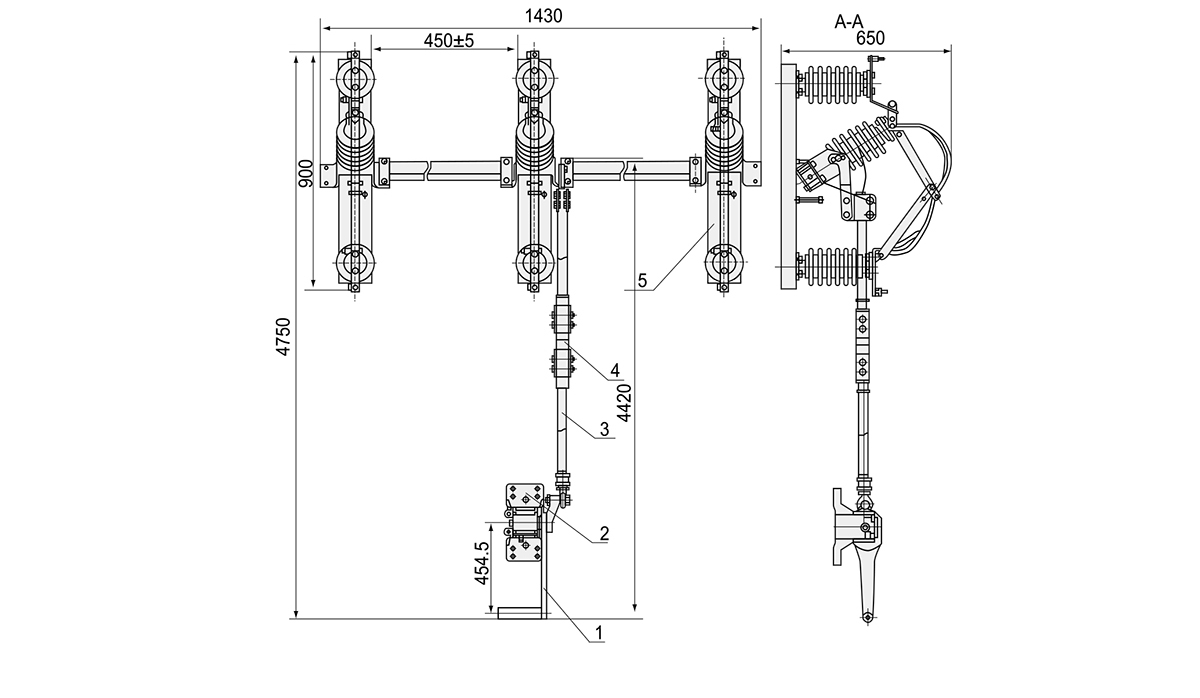

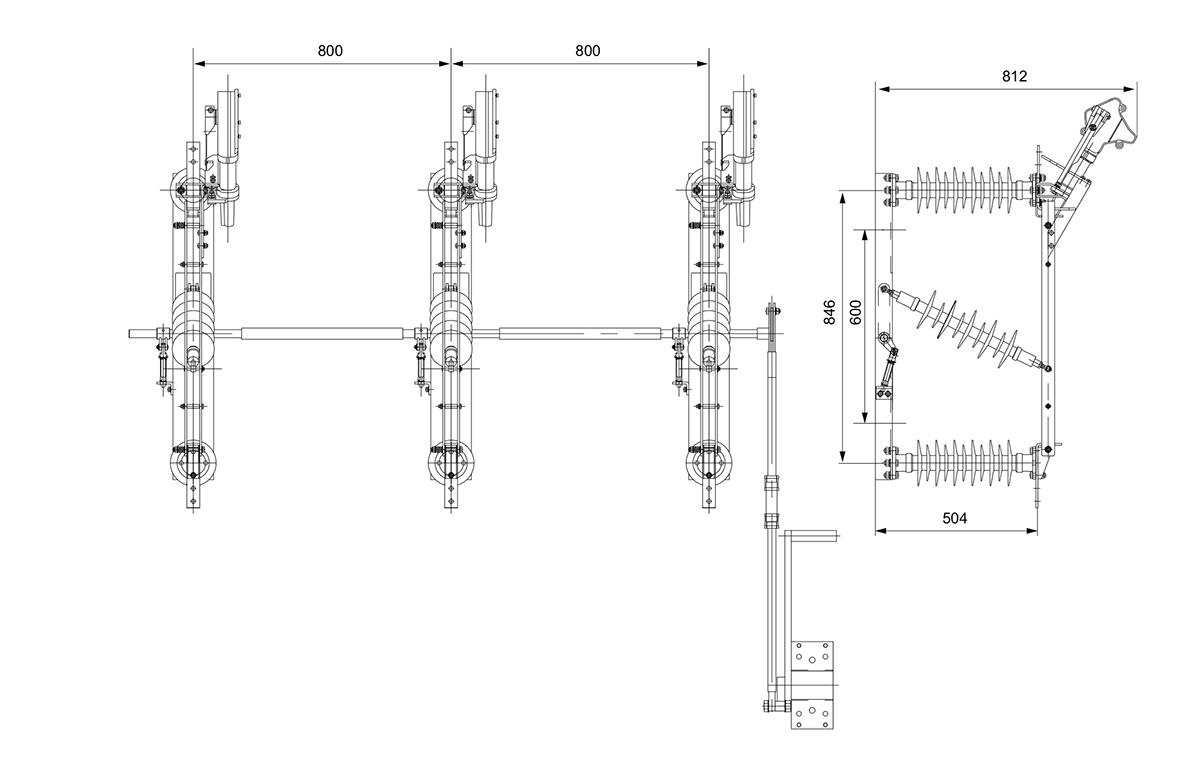

Outline Dimension

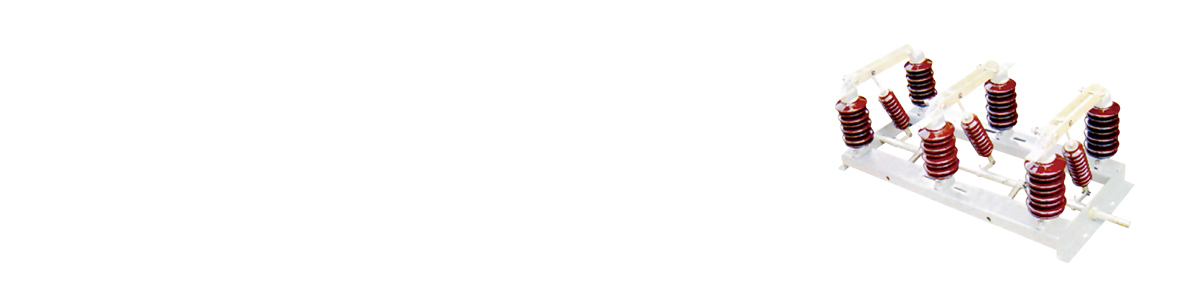

GW1-12/36 Outdoor Disconnect Switch
Summary

GW1-12(36)/630-20(25) outdoor AC high voltage disconnect switch (disconnect switch for short) is used to open and close circuit with voltage but no-load 50/60Hz, 12(36)kV power system, The anti-pollution type can be used in the serious pollution area. Three pole linkage, good synchronous performance.

Ambient Condition
Altitude: ≤3000m;
Ambient temperature: -30℃ ~+40℃;
Wind speed: ≤35m/s;
Air pollution: IV;
Earthquake intensity: ≤8 degree;
Ice thickness: ≤10mm.

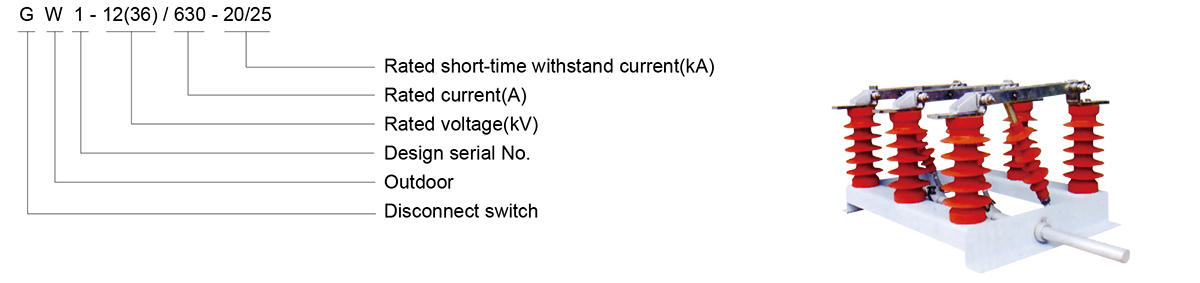

Model

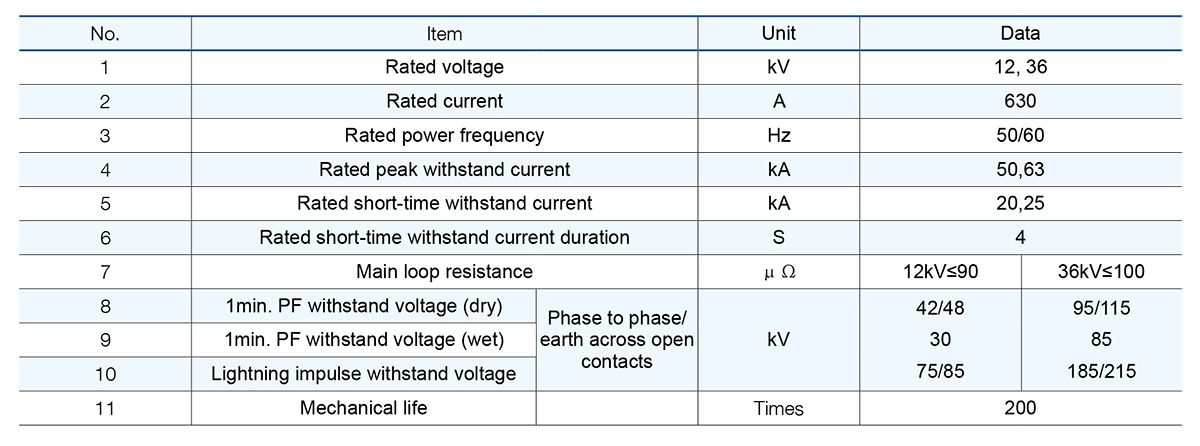

Technical Specification

Structure Feature

This disconnect switch consists of frame, operating insulating, static contactor, blade, linkage spring mechanism, etc.
Frame: 5mm chickness bended armor plate, there are holes on the frame to fixed post insulator.
Post and operating insulator: adopt ZS-12, 36 series outdoor clubbed post insulator, The mini resist bend load is 4000N.
Static contactor: it is made of violet copperplate and fixed on post insulator.
Blade: it is made of rectangular violet copperplate, there is an press-spring to adjust press.
The switch vertical or horizontal installed in outdoor with CS□ mechanism.

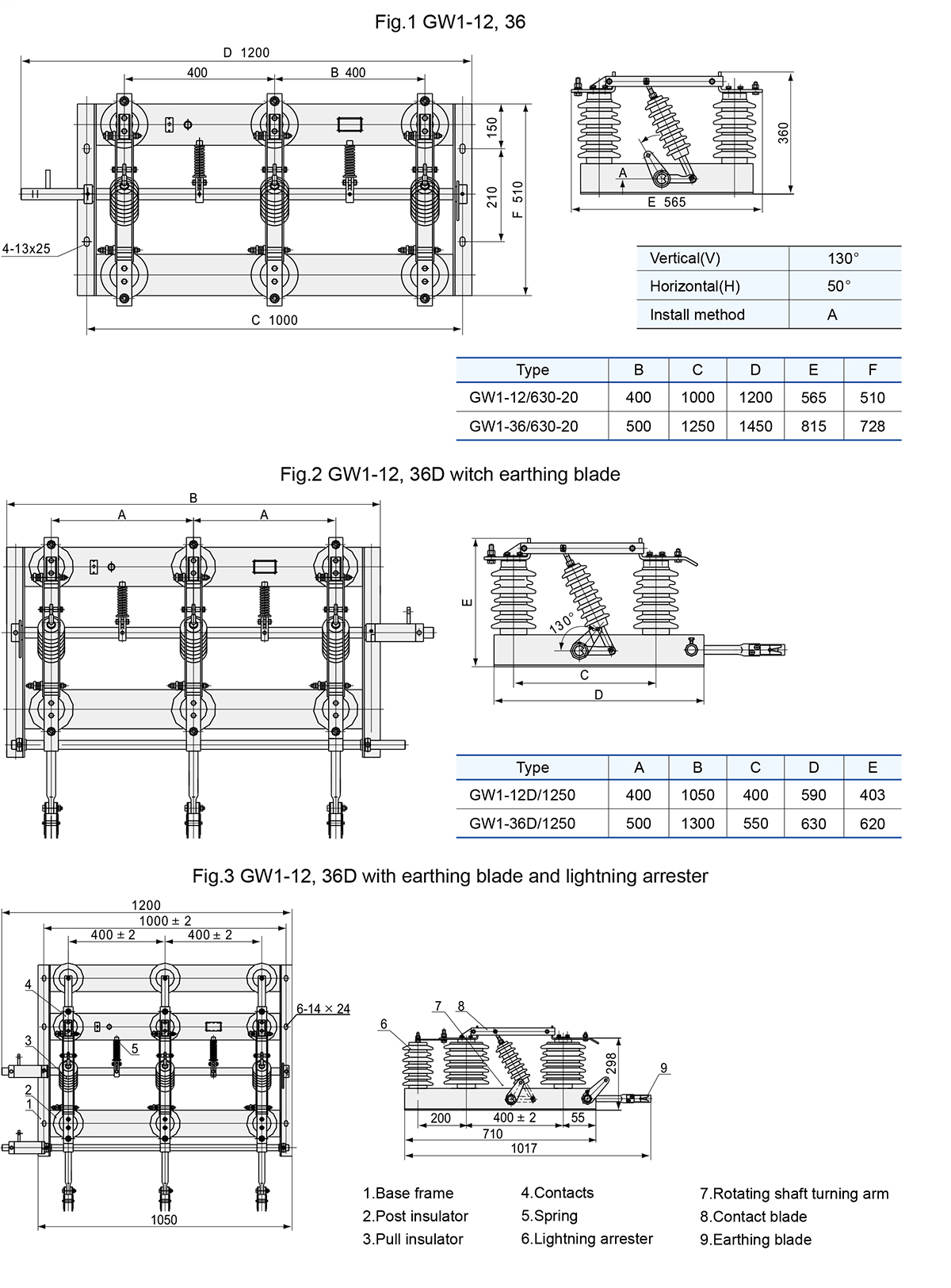

Outline Dimension

RH-A-15KV/27KV/38KV Outdoor Disconnect Switch(Distribution Type)

Summary

Outdoor disconnect switch used in 15KV、27KV and 38KV power distribution systems, with current from 200 to 630A. and it used as switching on and switching off at the voltage with no load.

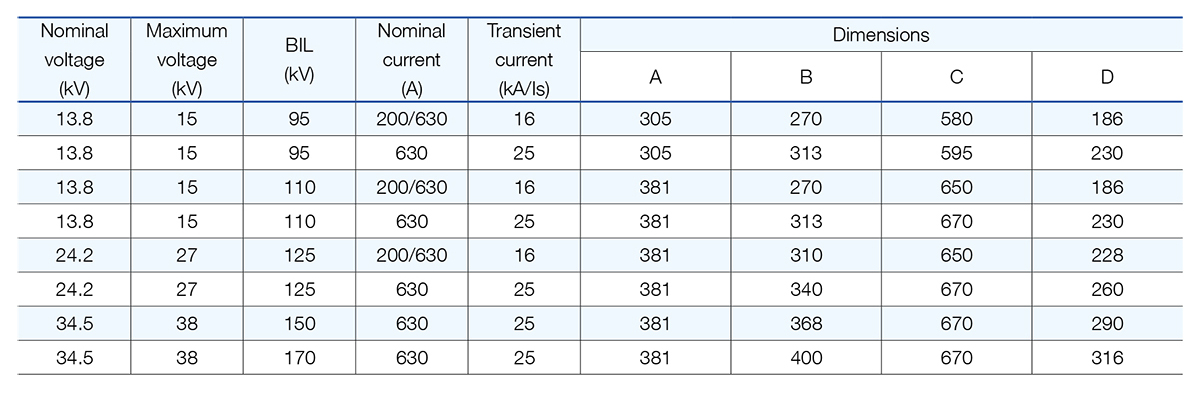

Technical Specification

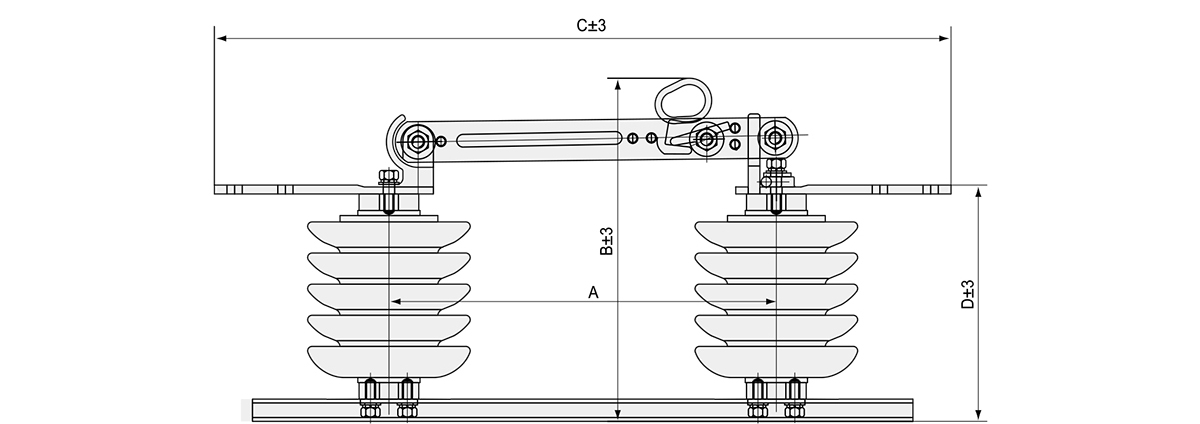

Outline Dimension
