Heat Shrinkable cable kits

Heat Shrinkable cable kits

FeaturesLight weight. Reliable operation. Easy installation, waterproof design. Under -50 ℃ to 50 ℃ temperature conditions, the service life is over 20 years Shrinkage ratio: Radial ≥ 50%, Axial≤ 10%.Shrinkage temperature: 120℃~140℃. Standards: GB / T12706, DL413, JB / T8144, IEEE Std. 48.IEEE Std. 404.VDE 0278.IEC 60502.ESI 09-13.
￥ 0.00
0.00

FeaturesLight weight. Reliable operation. Easy installation, waterproof design. Under -50 ℃ to 50 ℃ temperature conditions, the service life is over 20 years Shrinkage ratio: Radial ≥ 50%, Axial≤ 10%.Shrinkage temperature: 120℃~140℃. Standards: GB / T12706, DL413, JB / T8144, IEEE Std. 48.IEEE Std. 404.VDE 0278.IEC 60502.ESI 09-13.
Electrical stress control

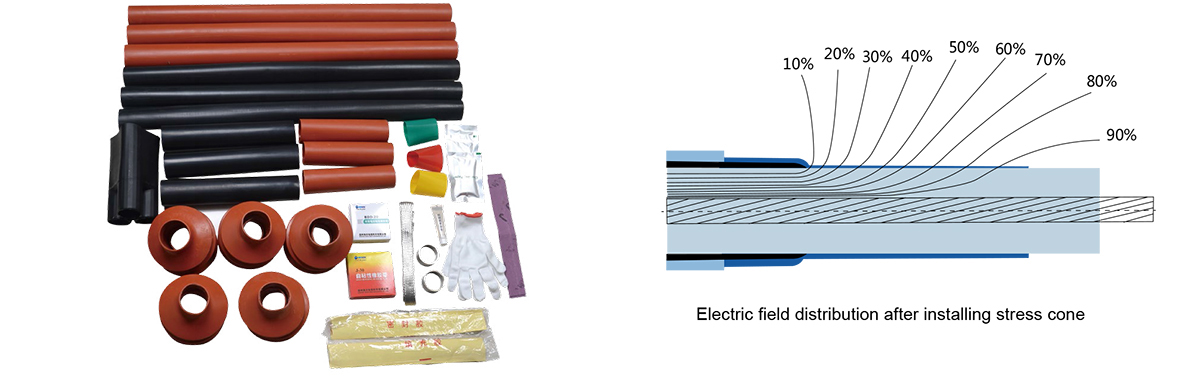

Whether the cable accessories can operate reliably depends on whether the electric field stress at the end of the cable cutout can be properly evacuated. The material used in the heat shrinkage stress control tube has a volume resistivity and a dielectric constant that matches the electric field of the cable at the connection. The operation forms an impedance at the end of the cable shield to act as an electrical stress evacuation to ensure that the heat- Operational reliability and extended service life.
 Features
Light weight. Reliable operation. Easy installation, waterproof design.
Under -50 ℃ to 50 ℃ temperature conditions, the service life is over 20 years
Shrinkage ratio: Radial ≥ 50%, Axial≤ 10%.
Shrinkage temperature: 120℃~140℃.
Standards: GB / T12706, DL413, JB / T8144, IEEE Std. 48.IEEE Std. 404.VDE 0278.IEC 60502.ESI 09-13.

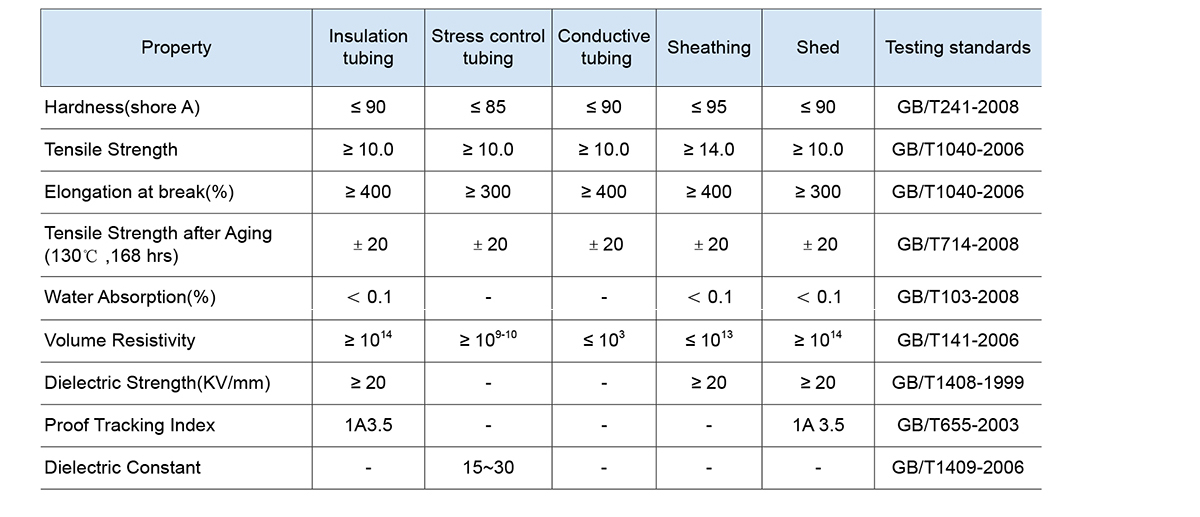

Technical Data

0.6/1KV Heat shrinkable cable accessories

Use and characteristics
1kV Heat shrinkable cable accessories products widely used 0.6 / 1KV cross-linked cable terminal and the middle of the continuous insulation treatment, according to the number of cable core can be divided into 1-core. 2-cores. 3-cores.4-cores. 5-cores and other cables to meet the different cross-section. With small size. Light weight. Reliable operation. Easy installation and so on.

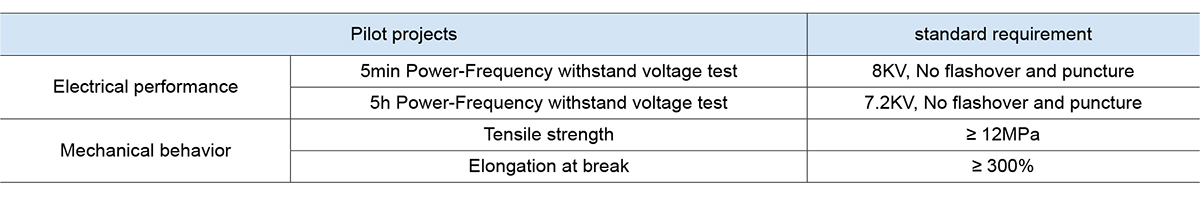

Performance and indicators

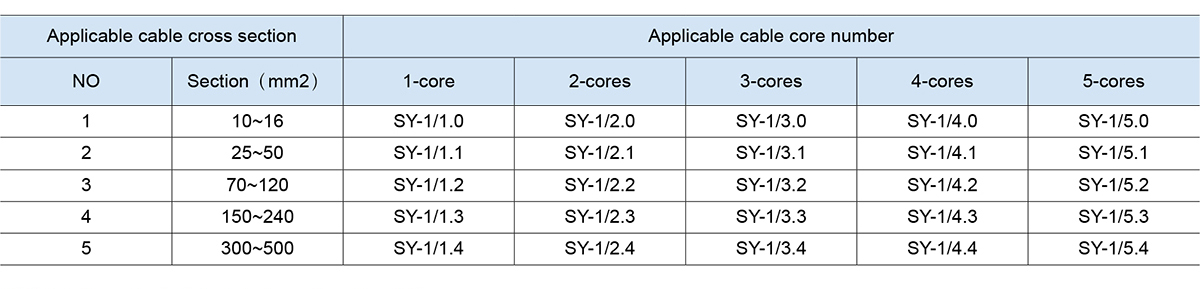

1KVL.V thermal cable terminal specifications

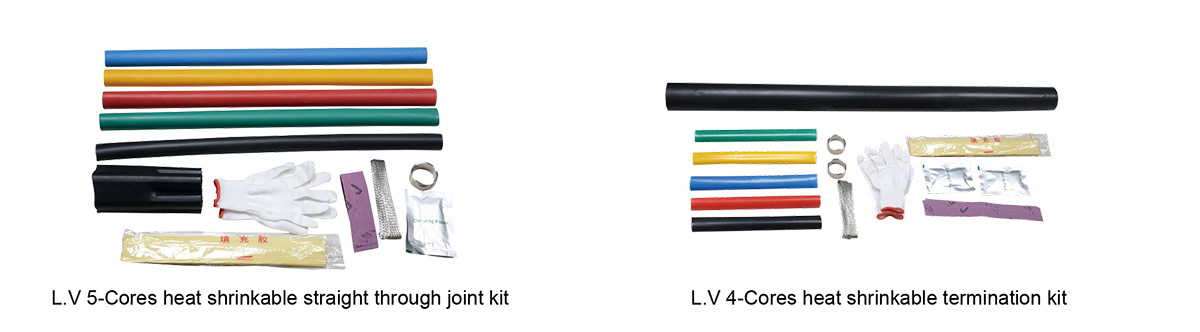

1KVL.V heat shrinkable termination kit

Note: There are armored cables to use accessories package
8.7/15KV Heat shrinkable cable accessories

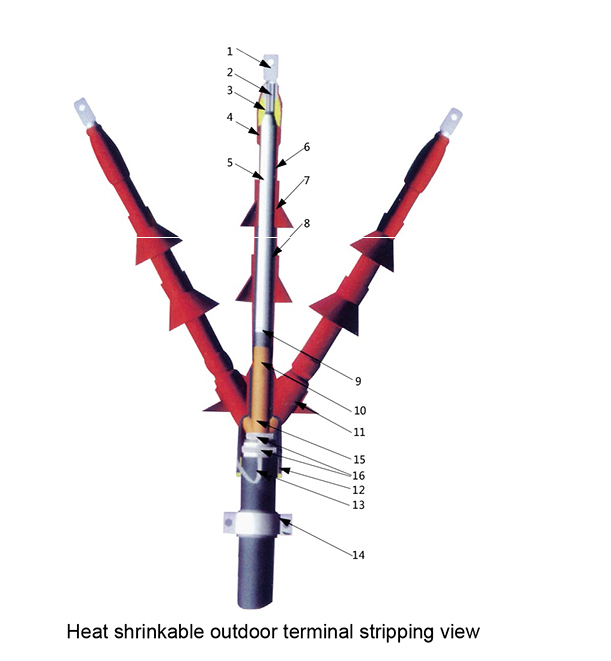

 1.lug
2.Cable core
3.Filling gum
4.Seal tubing
5.Insulation tubing
6.Outdoor heat shrink tube
7.Rainshed
8.Stress control tubing
9.Semi-conductive layer
10.Copper screen
11.Three-hole skirt
12.Outer jacket
13.Copper braid
14.Cable clamp
15.Triangle pad cone
16.Constant force spring

Tips: Recommended heat shrink attachment with
         constant force spring fixed ground
Use and characteristics
Heat shrinkable medium voltage products are widely used in 6 ~ 35kv cross-linked cable terminal and the middle of the continuous insulation treatment. With small size. Light weight. Reliable operation. Easy installation and so on. According to user needs can be multi-core cable. Double ground structure or special requirements of the product design.

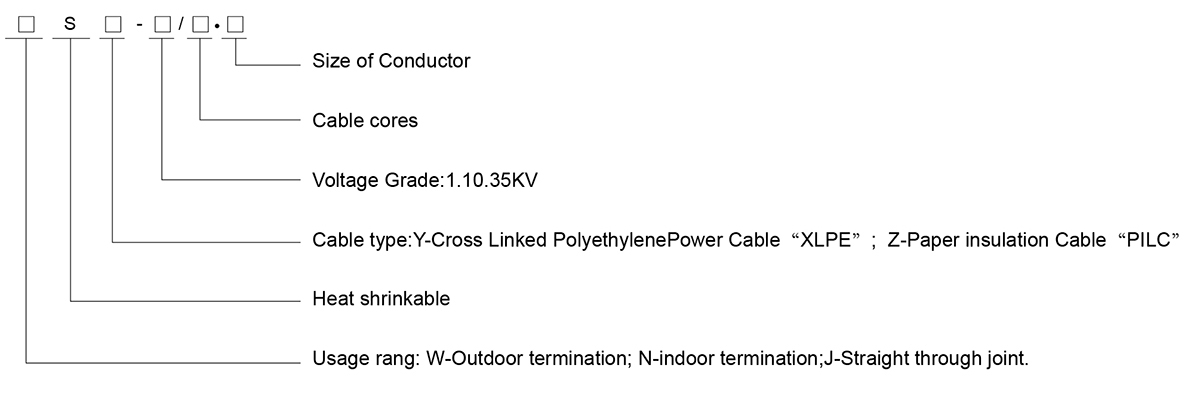

Description of type

Sample
1、WSY-10/3.2:10kv XLPE outdoor cable heat shrink terminals
for cross-section of 70-120mm²  three-core cable
2、JSZ-10/3.1:10kv PILC heat shrinking termination kit
for cross-section of 25mm² 3-core cable

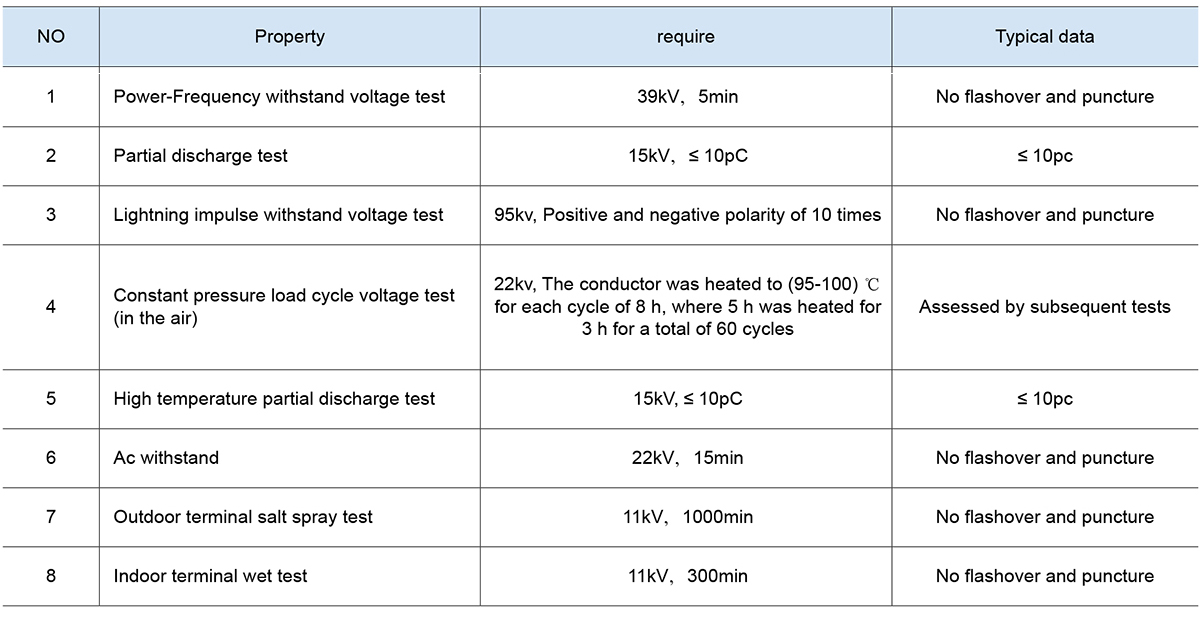

Technical Data

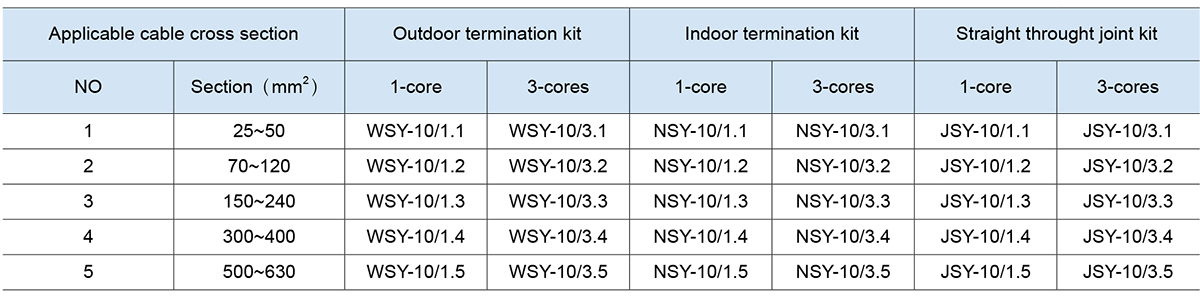

10KV  XPLE heat ahrinkable cable accessories

Note: There are armored cables to use accessories package

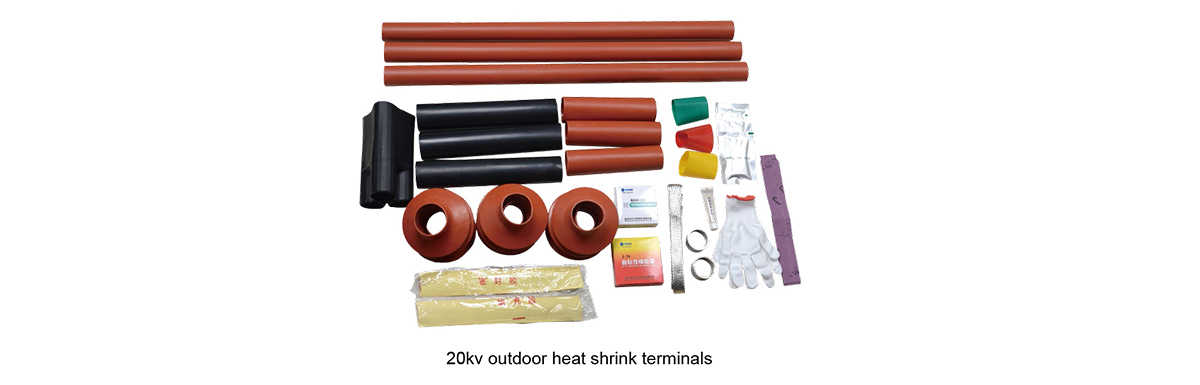

20KV Heat shrinkable cable accessories

Use and characteristics

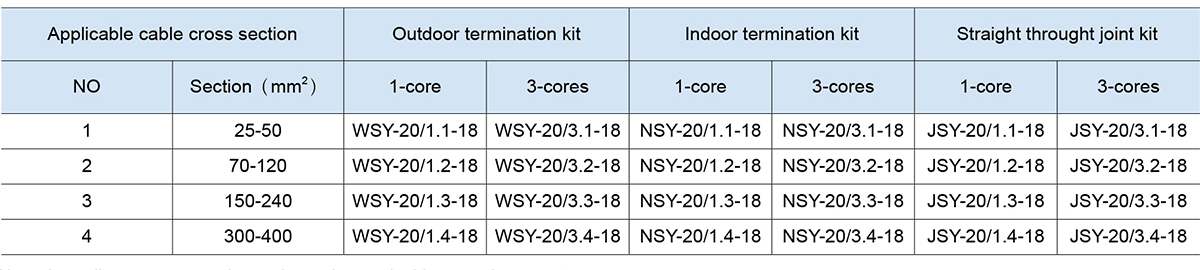

This product is suitable for the voltage level of 12 / 20KV. 18 / 20KV, the nominal cross-section of 25 ~ 400mm² cross-linked polyethylene insulation, ethylene-propylene rubber insulated single-core, three-core power cable indoor, outdoor terminals and intermediate joints, from the insulation, sealing, connection.
The electrical stress control of this product is parametric type, the use of stress tube. Products from the insulation tube, the semi-conductor tube, stress pipe, casing, branch sets, such as rainshed

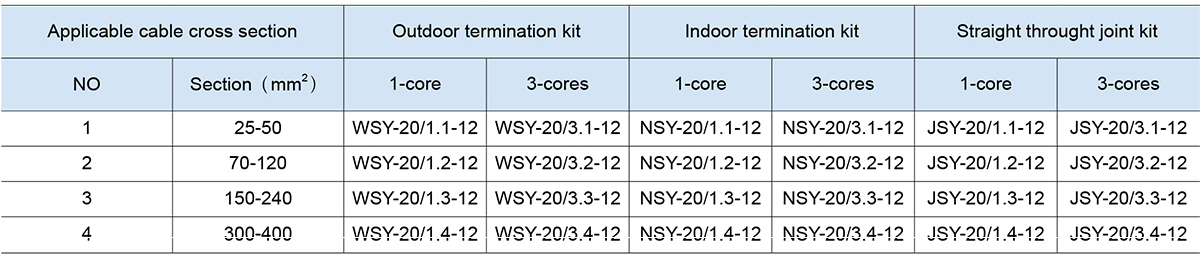

12 /20kV Heat ahrinkable cable accessories

Note: According to customer demand can choose double ground structure

18 /20kV Heat ahrinkable cable accessories

Note: According to customer demand can choose double ground structure

35KV Heat shrinkable cable accessories

Use and characteristics

Heat-shrinkable cable accessories are widely used in 35kv AC cable termination and intermediate connections for continuous insulation treatment. This series of products for 35kv grade different forms of cable.
With a small size, light weight, reliable operation, easy installation and so on. According to user needs can be multi-core cable, double ground structure or special requirements of the product design.

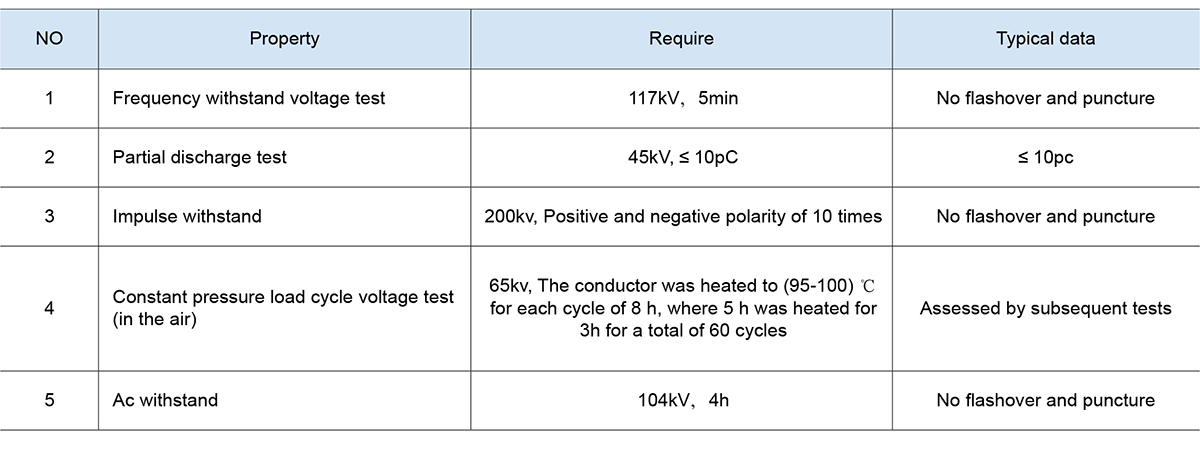

Technical Data

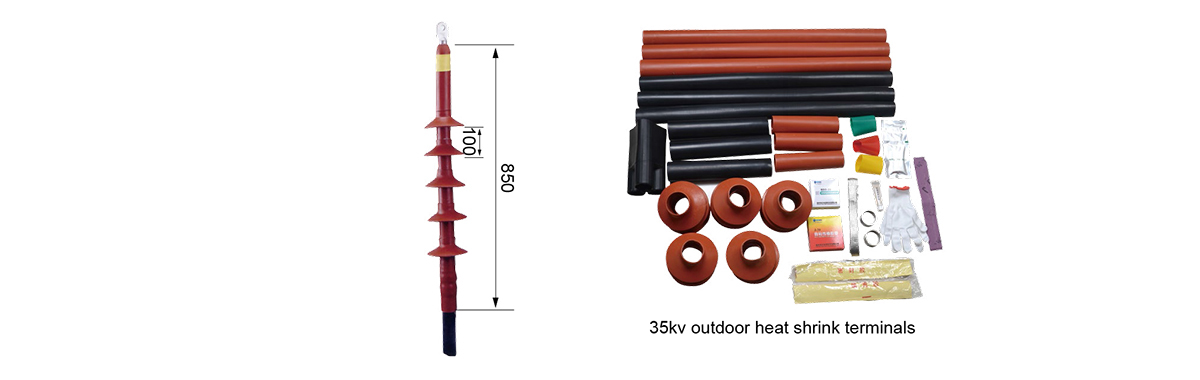

35kV Heat ahrinkable cable accessories

Note: According to customer demand can choose double ground structure
