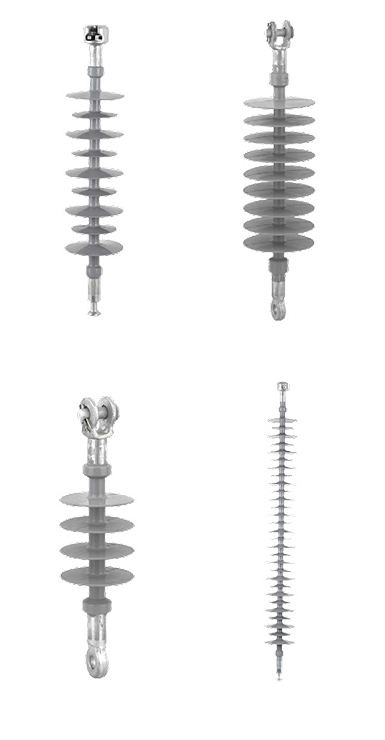

Composite insulator

General1. Ratings:12~500kV.2. Application: for lines supporting and insulation of power transmission & distribution system.
0.00
0.00

General1. Ratings:12~500kV.2. Application: for lines supporting and insulation of power transmission & distribution system.
Composite Long Rod Insulator

General

1. Ratings:12~500kV.
2. Application: for lines supporting and insulation of power transmission & distribution system.

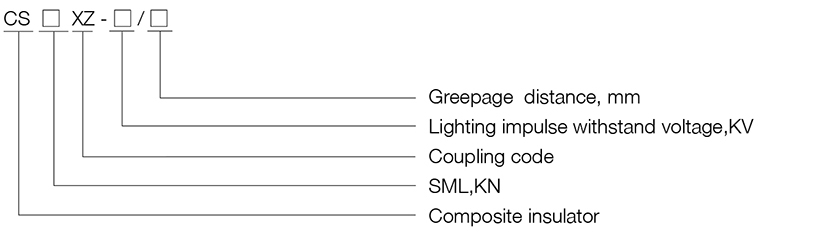

Type Designation

Working Condition

1. Ambient air temperature:-50℃~+50℃
2. Altitude:<=3000m
3. Frequency:<=100Hz

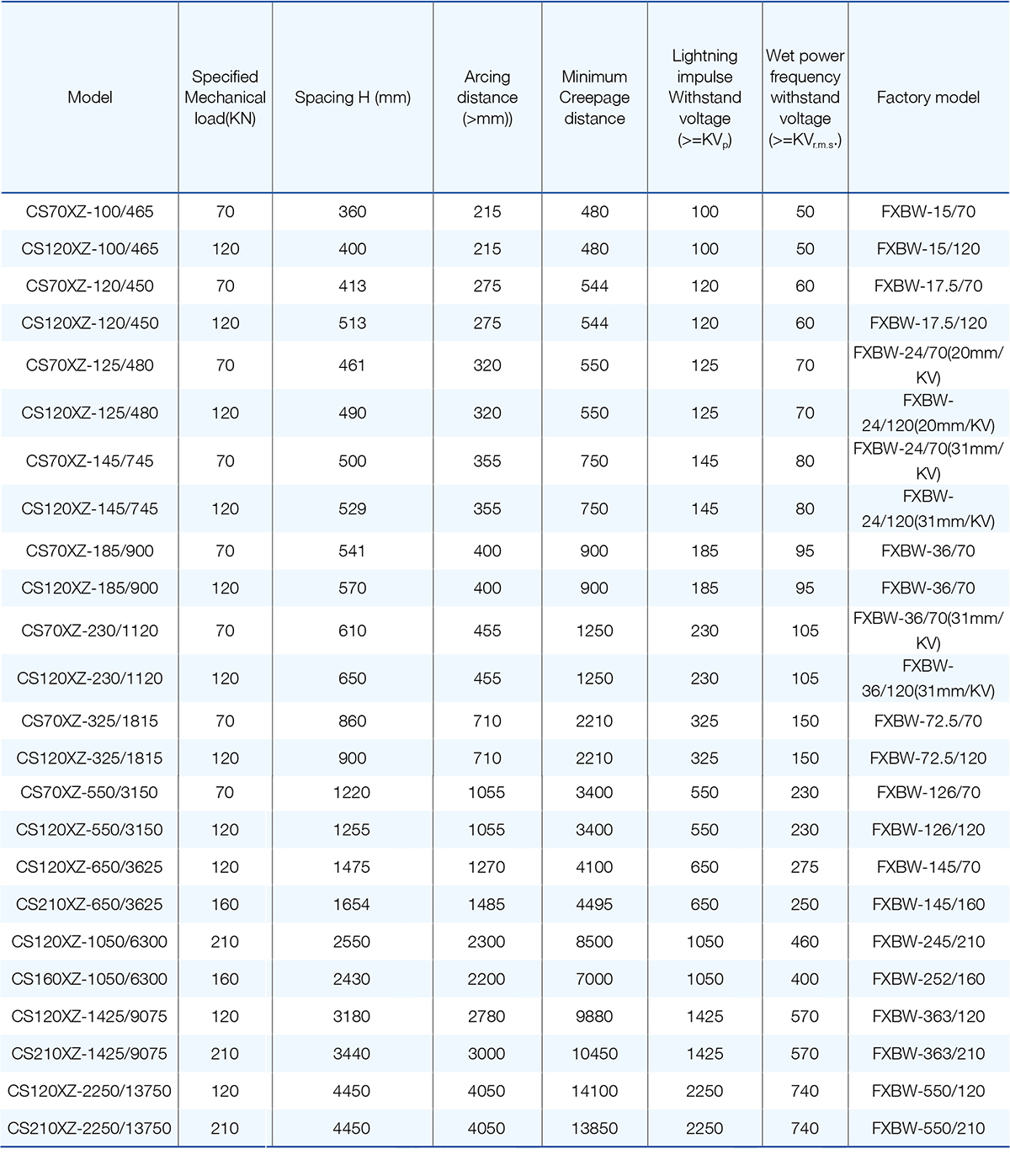

Main Technical Parameter

General

1. Ratings: up to 36KV.
2. Application: for lines supporting, suspending of power transmission & distribution system.
3. Standard : IEC 61952: 2008, ANSI, etc.

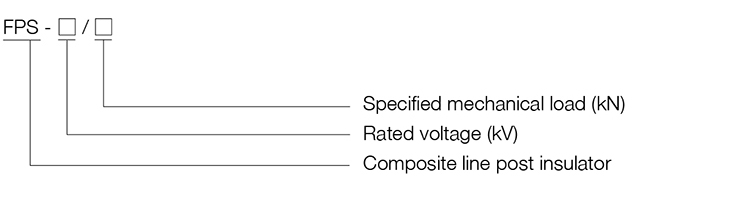

Type Designation


Working Condition


1. Ambient air temperature:-50℃~+50℃
2. Altitude:<=3000m
3. Frequency:<=100Hz

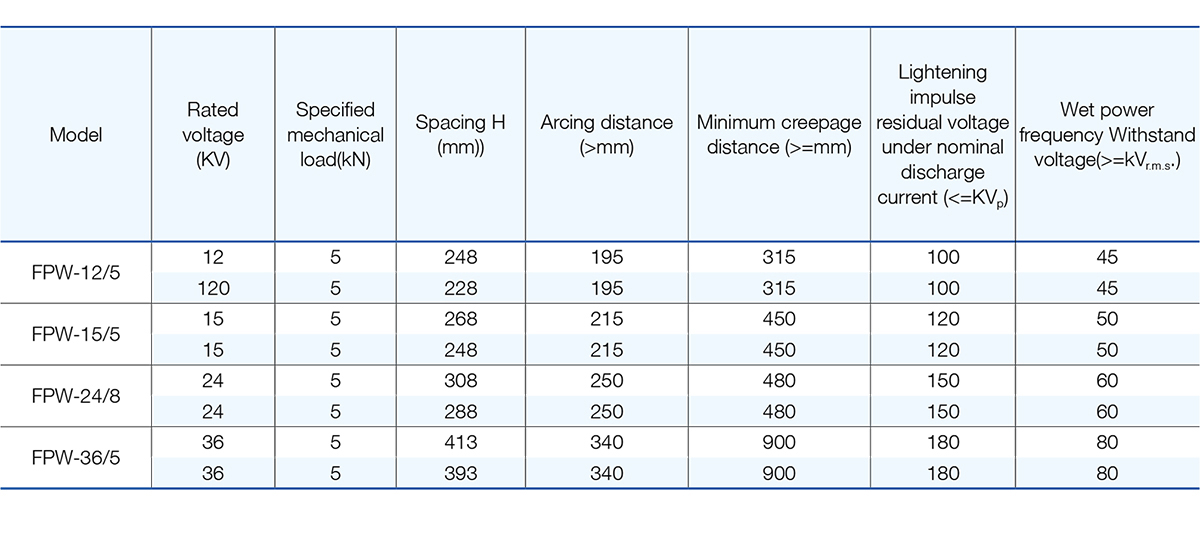

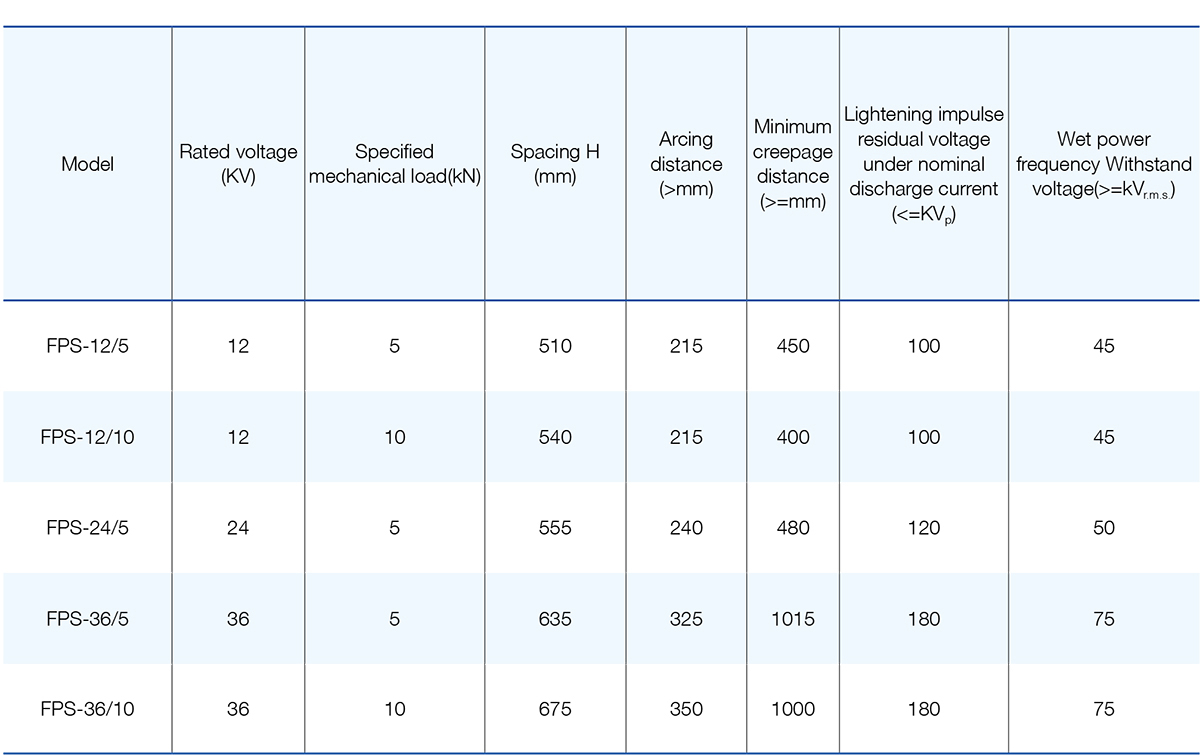

Main Technical Parameter

General
1.Ratings : up to 252kV.
2.Application : for lines supporting and insulation of power transmission & distribution system.
3.Standard: IEC 62217:2005,IEC 62231:2006,ANSI,etc.

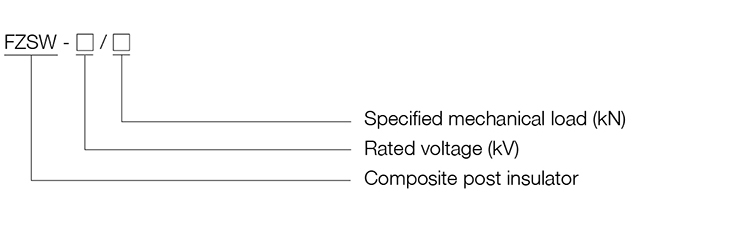

Type Designation

Working Condition
1.Ambient air temperature: -50℃~+50℃
3.Altitude : <=3000m
3.Frequency:<=100Hz

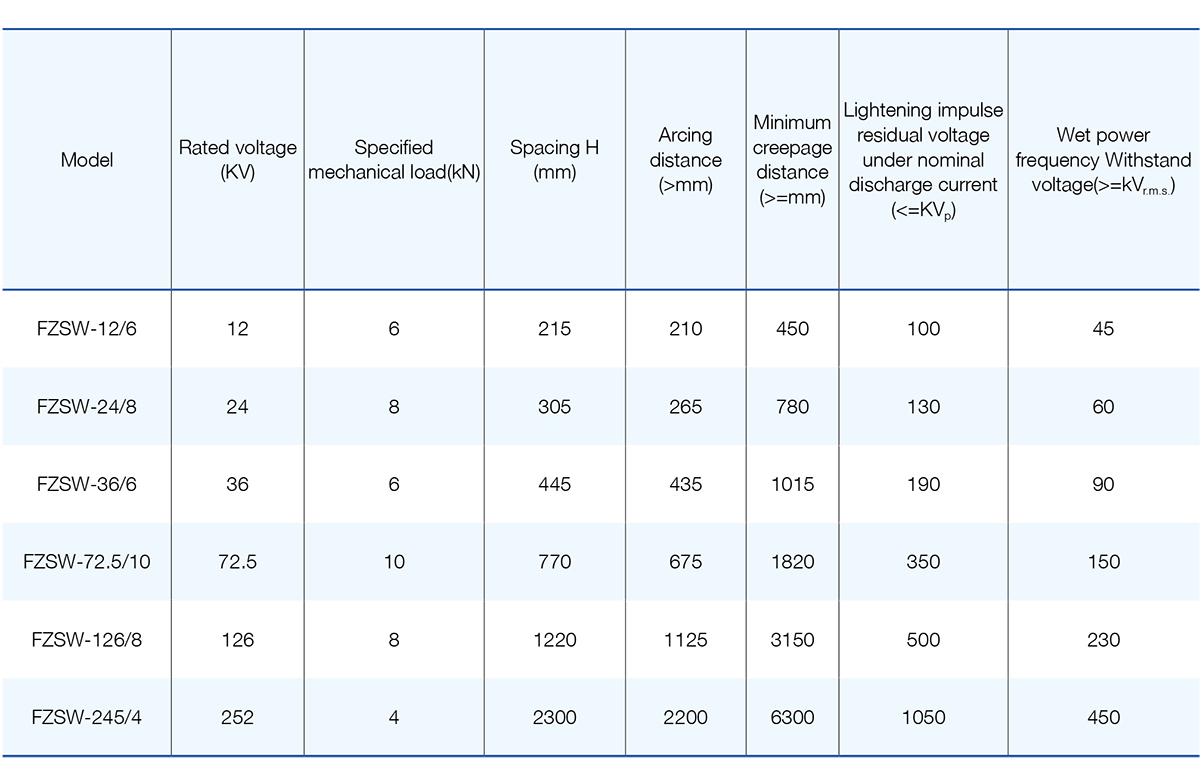

Main Technical Parameter

General

1.Ratings : up to 36kV.
2.Application : for lines suspending and insulation of power transmission & distribution system.
3.Standard: IEC 61109: 2008, IEC 61952: 2003,ANSI,etc.

Type Designation


Working Condition

1. Ambient air temperature: -50℃~+50℃
2. Altitude : <=3000m
3. Frequency:<=100Hz


Main Technical parameter
